12.8. Binned fits solutions: Exercise 12.1#

Write a program that fits the events saved in the file dati.txt.

  • Take care to determine the range and binning of the histogram used for the fit based on the events themselves, writing appropriate algorithms to determine the minimum and maximum of the sample and a reasonable estimate of the number of bins to use.

  • Determine the initial values of the fit parameters using the techniques described in the lesson.

  • Print the fit result on the screen.

  • Plot the histogram with the fitted model overlaid.

  • Which parameters are correlated, and which are anti-correlated with each other?

import numpy as np
from math import floor, ceil
from matplotlib import pyplot as plt

# read the file
with open('dati.txt') as f:
    sample = [float (x) for x in f.readlines()]

# show its content in a histogram
sample_mean = np.mean (sample)
sample_sigma = np.std (sample)
# first guess of x_axis range, before looking at the histogram
# x_min = sample_mean - 3 * sample_sigma
# x_max = sample_mean + 3 * sample_sigma
x_min   = floor (min (sample))
x_max   = ceil (max (sample))
x_range = (x_min, x_max)
N_bins  = floor (len (sample)/100)

# build a numpy histogram containing the data counts in each bin
bin_content, bin_edges = np.histogram (sample, bins = N_bins, range = x_range)

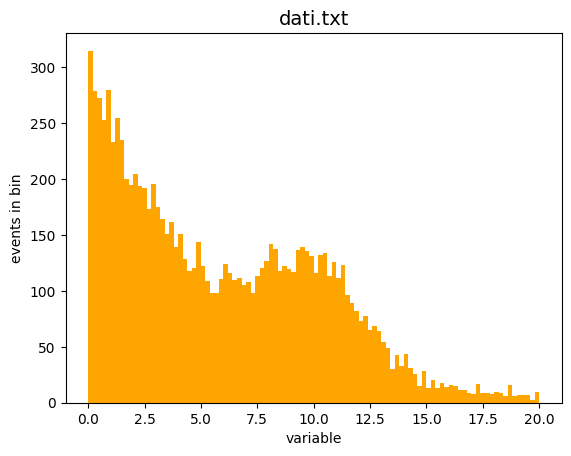

fig, ax = plt.subplots ()
ax.set_title ('dati.txt', size=14)
ax.set_xlabel('variable')
ax.set_ylabel('events in bin')
ax.hist (sample,
         bins = bin_edges,
         color = 'orange',
        )
plt.show ()
../../../_images/2999b4718b3b59ec84acff47e96123711129078c870211b19da98171ff66ee63.png

12.8.1. building the fitting model#

from iminuit import Minuit
from scipy.stats import expon, norm
from iminuit.cost import ExtendedBinnedNLL

# the fitting function
def mod_total (bin_edges, N_signal, mu, sigma, N_background, tau):
    return N_signal * norm.cdf (bin_edges, mu, sigma) + \
            N_background * expon.cdf (bin_edges, 0, tau)

N_events = sum (bin_content)

# the cost function for the fit
my_cost_func = ExtendedBinnedNLL (bin_content, bin_edges, mod_total)

# the fitting algoritm
my_minuit = Minuit (my_cost_func,
                    N_signal = N_events, mu = sample_mean, sigma = sample_sigma, # signal input parameters
                    N_background = N_events, tau = 1.)                          # background input parameters

# bounds the following parameters to being positive
my_minuit.limits['N_signal', 'N_background', 'sigma', 'tau'] = (0, None)

12.8.2. fitting with only the background model#

to determine the background parameters to be used as starting point for the final fit

# fixing the following parameters,
# setting the signal to zero for a first background-only preliminary fit
my_minuit.values["N_signal"] = 0
my_minuit.fixed["N_signal", "mu", "sigma"] = True

# we temporarily mask out the signal
bin_centres = 0.5 * (bin_edges[1:] + bin_edges[:-1])
my_cost_func.mask = (bin_centres < 5) | (15 < bin_centres)

my_minuit.migrad ()
my_minuit.minos ()
print (my_minuit.valid)
display (my_minuit)

True
Migrad
FCN = 43.56 (χ²/ndof = 0.9) Nfcn = 142
EDM = 9.51e-08 (Goal: 0.0002)
Valid Minimum Below EDM threshold (goal x 10)
No parameters at limit Below call limit
Hesse ok Covariance accurate
Name Value Hesse Error Minos Error- Minos Error+ Limit- Limit+ Fixed
0 N_signal 0 0.1e3 0 yes
1 mu 5.92 0.06 yes
2 sigma 4.43 0.04 0 yes
3 N_background 7.98e3 0.13e3 -0.13e3 0.13e3 0
4 tau 5.2 0.1 -0.1 0.1 0
N_background tau
Error -0.13e3 0.13e3 -0.1 0.1
Valid True True True True
At Limit False False False False
Max FCN False False False False
New Min False False False False
N_signal mu sigma N_background tau
N_signal 0 0 0 0 0.000
mu 0 0 0 0 0.000
sigma 0 0 0 0 0.000
N_background 0 0 0 1.71e+04 7.192 (0.534)
tau 0.000 0.000 0.000 7.192 (0.534) 0.0106
2024-11-17T07:56:15.792653 image/svg+xml Matplotlib v3.7.5, https://matplotlib.org/

12.8.3. fitting with only the signal model#

to estimate the signal parameters to be used as starting point for the final fit

my_cost_func.mask = None # remove mask
my_minuit.fixed = False # release all parameters
my_minuit.fixed["N_background", "tau"] = True # fix background amplitude
my_minuit.values["N_signal"] = N_events - my_minuit.values["N_background"] # do not start at the limit

my_minuit.migrad ()
my_minuit.minos ()
print (my_minuit.valid)
display (my_minuit)

True
Migrad
FCN = 88.68 (χ²/ndof = 0.9) Nfcn = 406
EDM = 8.41e-08 (Goal: 0.0002)
Valid Minimum Below EDM threshold (goal x 10)
No parameters at limit Below call limit
Hesse ok Covariance accurate
Name Value Hesse Error Minos Error- Minos Error+ Limit- Limit+ Fixed
0 N_signal 2.23e3 0.07e3 -0.07e3 0.07e3 0
1 mu 9.99 0.08 -0.08 0.08
2 sigma 2.04 0.06 -0.06 0.07 0
3 N_background 7.98e3 0.13e3 -0.13e3 0.13e3 0 yes
4 tau 5.2 0.1 -0.1 0.1 0 yes
N_background tau N_signal mu sigma
Error -0.13e3 0.13e3 -0.1 0.1 -70 70 -0.08 0.08 -0.06 0.07
Valid True True True True True True True True True True
At Limit False False False False False False False False False False
Max FCN False False False False False False False False False False
New Min False False False False False False False False False False
N_signal mu sigma N_background tau
N_signal 4.9e+03 -1.390 (-0.263) 1.744 (0.384) 0e3 0e3
mu -1.390 (-0.263) 0.00572 -0.001 (-0.293) 0.000 0.000
sigma 1.744 (0.384) -0.001 (-0.293) 0.00421 0.000 0.000
N_background 0e3 0.000 0.000 0 0
tau 0e3 0.000 0.000 0 0
2024-11-17T07:56:16.115694 image/svg+xml Matplotlib v3.7.5, https://matplotlib.org/

12.8.4. final fit over the full range, with the full model#

my_minuit.fixed = False # release all parameters
my_minuit.migrad ()
my_minuit.minos ()
print (my_minuit.valid)
display (my_minuit)

True
Migrad
FCN = 87.78 (χ²/ndof = 0.9) Nfcn = 898
EDM = 5.83e-08 (Goal: 0.0002)
Valid Minimum Below EDM threshold (goal x 10)
No parameters at limit Below call limit
Hesse ok Covariance accurate
Name Value Hesse Error Minos Error- Minos Error+ Limit- Limit+ Fixed
0 N_signal 2.31e3 0.11e3 -0.11e3 0.11e3 0
1 mu 9.97 0.08 -0.08 0.08
2 sigma 2.09 0.08 -0.08 0.08 0
3 N_background 7.85e3 0.14e3 -0.14e3 0.14e3 0
4 tau 5.11 0.11 -0.11 0.11 0
N_background tau N_signal mu sigma
Error -0.14e3 0.14e3 -0.11 0.11 -0.11e3 0.11e3 -0.08 0.08 -0.08 0.08
Valid True True True True True True True True True True
At Limit False False False False False False False False False False
Max FCN False False False False False False False False False False
New Min False False False False False False False False False False
N_signal mu sigma N_background tau
N_signal 1.18e+04 -2.857 (-0.334) 5.921 (0.661) -0.011e6 (-0.694) -8.275 (-0.672)
mu -2.857 (-0.334) 0.00621 -0.002 (-0.369) 3.034 (0.271) 0.001 (0.108)
sigma 5.921 (0.661) -0.002 (-0.369) 0.00681 -6.641 (-0.567) -0.005 (-0.523)
N_background -0.011e6 (-0.694) 3.034 (0.271) -6.641 (-0.567) 2.01e+04 10.022 (0.622)
tau -8.275 (-0.672) 0.001 (0.108) -0.005 (-0.523) 10.022 (0.622) 0.0129
2024-11-17T07:56:16.480960 image/svg+xml Matplotlib v3.7.5, https://matplotlib.org/

12.8.5. The parameter values and uncertainties#

print (my_minuit.params)

┌───┬──────────────┬───────────┬───────────┬────────────┬────────────┬─────────┬─────────┬───────┐
│   │ Name         │   Value   │ Hesse Err │ Minos Err- │ Minos Err+ │ Limit-  │ Limit+  │ Fixed │
├───┼──────────────┼───────────┼───────────┼────────────┼────────────┼─────────┼─────────┼───────┤
│ 0 │ N_signal     │  2.31e3   │  0.11e3   │  -0.11e3   │   0.11e3   │    0    │         │       │
│ 1 │ mu           │   9.97    │   0.08    │   -0.08    │    0.08    │         │         │       │
│ 2 │ sigma        │   2.09    │   0.08    │   -0.08    │    0.08    │    0    │         │       │
│ 3 │ N_background │  7.85e3   │  0.14e3   │  -0.14e3   │   0.14e3   │    0    │         │       │
│ 4 │ tau          │   5.11    │   0.11    │   -0.11    │    0.11    │    0    │         │       │
└───┴──────────────┴───────────┴───────────┴────────────┴────────────┴─────────┴─────────┴───────┘

#print (my_minuit.merrors)
for elem in my_minuit.merrors:
    print (elem + ' : + ' + str (my_minuit.merrors[elem].upper) + ' ' + str (my_minuit.merrors[elem].lower))

N_background : + 141.66775413425472 -142.36422040710445
tau : + 0.11391045390235016 -0.11325068986127501
N_signal : + 110.42712429024122 -106.93841119454108
mu : + 0.07828724013391442 -0.07937371088817008
sigma : + 0.08437594659571487 -0.08092110134051589

for key in my_minuit.parameters : # parameters is a tuple containing the parameter names
    print ('parameter ' + key + ': ' +
           str (my_minuit.values[key]) + ' +- ' +
           str (my_minuit.errors[key]) + '   |   ' +
           str (my_minuit.merrors[key].upper) + ' ' +
           str (my_minuit.merrors[key].lower)
          )

parameter N_signal: 2308.151255368936 +- 108.58043593489424   |   110.42712429024122 -106.93841119454108
parameter mu: 9.973943367662883 +- 0.07878646730311632   |   0.07828724013391442 -0.07937371088817008
parameter sigma: 2.086530851380141 +- 0.08254071945895425   |   0.08437594659571487 -0.08092110134051589
parameter N_background: 7848.772941136121 +- 141.92677363095527   |   141.66775413425472 -142.36422040710445
parameter tau: 5.112032036332261 +- 0.11349564455128247   |   0.11391045390235016 -0.11325068986127501

12.8.6. Covariance matrix of the parameters#

print (my_minuit.covariance)

┌──────────────┬──────────────────────────────────────────────────────────────────┐
│              │     N_signal           mu        sigma N_background          tau │
├──────────────┼──────────────────────────────────────────────────────────────────┤
│     N_signal │     1.18e+04       -2.857        5.921     -0.011e6       -8.275 │
│           mu │       -2.857      0.00621       -0.002        3.034        0.001 │
│        sigma │        5.921       -0.002      0.00681       -6.641       -0.005 │
│ N_background │     -0.011e6        3.034       -6.641     2.01e+04       10.022 │
│          tau │       -8.275        0.001       -0.005       10.022       0.0129 │
└──────────────┴──────────────────────────────────────────────────────────────────┘

print (my_minuit.covariance[0][1])
print (my_minuit.covariance['N_signal']['N_background'])

-2.856893889315263
-10688.500409654729

# get the correlation matrix:
print (my_minuit.covariance.correlation ())

┌──────────────┬──────────────────────────────────────────────────────────────────┐
│              │     N_signal           mu        sigma N_background          tau │
├──────────────┼──────────────────────────────────────────────────────────────────┤
│     N_signal │            1         -0.3          0.7         -0.7         -0.7 │
│           mu │         -0.3            1         -0.4          0.3          0.1 │
│        sigma │          0.7         -0.4            1         -0.6         -0.5 │
│ N_background │         -0.7          0.3         -0.6            1          0.6 │
│          tau │         -0.7          0.1         -0.5          0.6            1 │
└──────────────┴──────────────────────────────────────────────────────────────────┘
